Using Spatial Objects as Areas of Interest • firex

This vignette shows how to pass a spatial object directly to get_layer() as the area of interest. This is useful when users already have a study boundary, such as a shapefile, GeoJSON file, sf object, or terra object, and do not want to manually enter bounding-box coordinates.

For spatial objects, get_layer() reads the object’s coordinate reference system, derives its extent, and retrieves the overlapping COG tiles. The returned raster is cropped to the area-of-interest extent. It is not masked to the exact polygon boundary. Users who need exact polygon clipping can apply terra::mask() after retrieval.

Setup

library(firex)
library(terra)
library(sf)

Accepted Input Types

get_layer() accepts several area-of-interest input types, including numeric bounding boxes, spatial files, sf objects, and terra objects. Inputs without stored coordinate reference system information, such as numeric bounding boxes and SpatExtent objects, require aoi_crs.

Example: Shapefile Path

Pass the file path as a character string. For a shapefile, the coordinate reference system is read from the .prj sidecar file, so aoi_crs is not needed.

shp <- system.file(
  "demos/data/Eaton_Perimeter_20250121.shp",
  package = "firex"
)

wri_eaton <- get_layer("WRI_score", aoi = shp)

wri_eaton
#> class       : SpatRaster
#> dimensions  : 193, 256, 1  (nrow, ncol, nlyr)
#> resolution  : 90, 90  (x, y)
#> coord. ref. : NAD83 / Conus Albers (EPSG:5070)

The returned raster covers the extent of the Eaton Fire perimeter. This avoids manually entering coordinates while keeping the result compatible with terra workflows.

Example: sf Object

eaton <- sf::st_read(shp, quiet = TRUE)
wri_sf <- get_layer("WRI_score", aoi = eaton)

# The shapefile path and sf object define the same area of interest.
all.equal(terra::ext(wri_eaton), terra::ext(wri_sf))
#> [1] TRUE

This shows that users can choose the input format that best matches their workflow. The package handles the spatial object and derives the retrieval extent internally.

Example: SpatExtent

A terra::SpatExtent stores only the bounding coordinates, not the coordinate reference system. Because of this, aoi_crs must be supplied explicitly.

eaton_v <- terra::vect(shp)
eaton_crs <- terra::crs(eaton_v)
eaton_ext <- terra::ext(eaton_v)

wri_ext <- get_layer(
  "WRI_score",
  aoi = eaton_ext,
  aoi_crs = eaton_crs
)

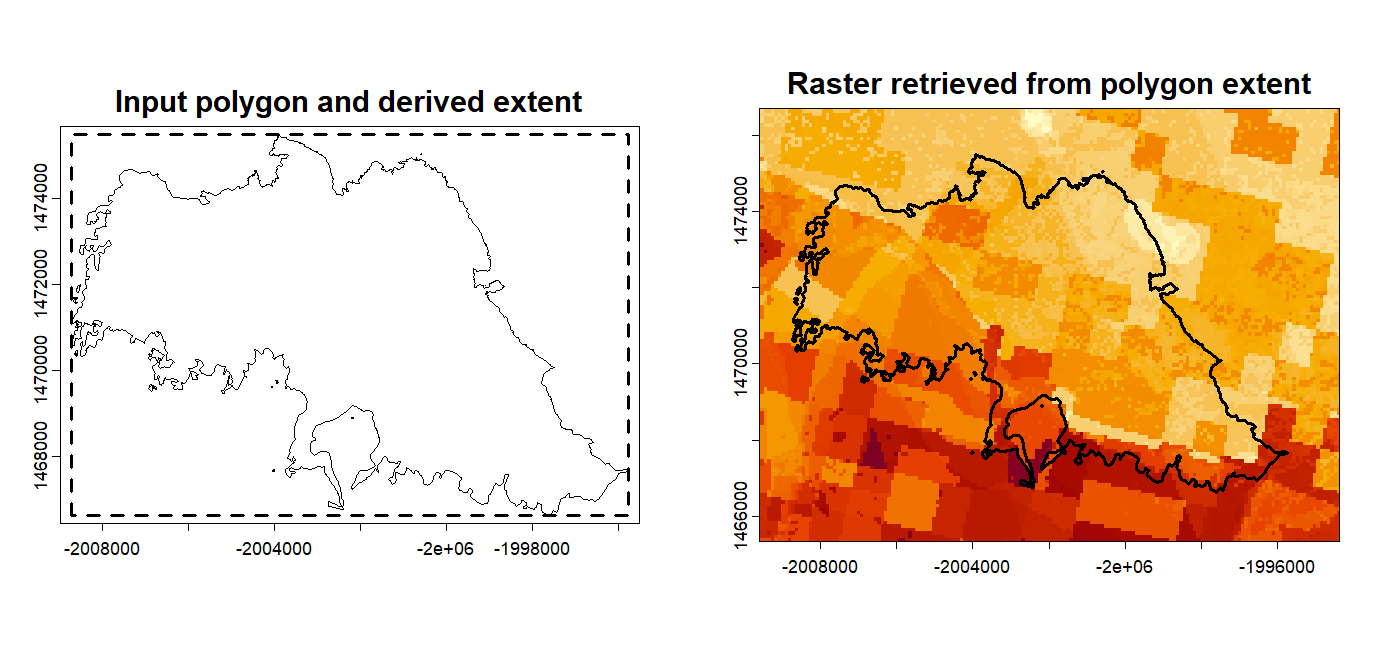

Figure 5. Polygon-based area-of-interest input. Left: the Eaton Fire perimeter and the bounding extent derived from that geometry. Right: get_layer() retrieves the WRI_score raster over that extent, with the original perimeter overlaid for context.

The figure is generated from the reproducible script inst/figures/fig5_bbox_vs_polygon.R.
